Rear Sets - Ducati Diavel 2011-18
SATO RACING Rear Sets for 2011-18 Ducati Diavel (part# D-DLRS) features an extensively track-engineered and tested design, with components precision CNC-machined out of light-weight, high strength anodized billet aluminum, with stainless steel bolts and hardware. Modular step plate design provides 12 adjustable positions in a useful range for performance riding. Choice of all-Black anodized finish, or Silver or Gold over Black-anodized base plates and exhaust hanger.
Options include an adjustable Shift Arm (part# D-CA) that matches these Rear Sets, as shown in the photos above (Sold separately). The Frame Plugs, Clutch Slave Cylinder and Rear Brake Reservoir Cap seen in the photos are also available options.
Details:
The Foot Pegs are fixed type (non-folding) and are finely knurled for optimal grip, along with a comfortable, intuitive feel. Pegs have pre-installed End Caps made of black Delrin.
The Pedal Tips (toe pegs) are made of abrasion-resistant black Delrin.
The Base Plates and Exhaust Hanger bracket are made of high-strength Black anodized billet aluminum.
The Shift and Brake Pedals use dual miniature stainless bearings for smooth, precise lever actuation with a solid feel.

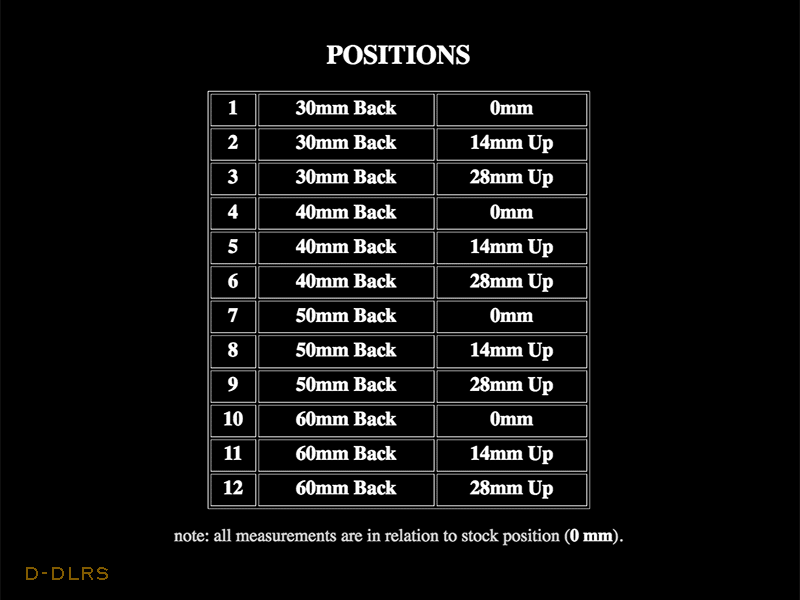

The Foot Pegs are adjustable 4 ways on the Step Plates, and the Step Plates are also adjustable 3 ways on the Base Plates, providing positions 30mm-60mm back and 0mm-28mm higher up compared to stock, for a more sportbike-like foot position.
Includes hardware for attaching the stock brake light switch.
Rear Sets kit includes a basic install guide, but does not detail how to remove the stock controls (refer to a shop manual). We highly recommend installation be performed by a certified mechanic.
a small tube of threadlocker is included in the kit.
