Rear Sets - Suzuki Katana '19-
SATO RACING Rear Sets for 2019-24 Suzuki Katana (part# S-KATRS) features a track-engineered design, with components precision CNC-machined out of light-weight, high strength anodized billet aluminum, with stainless steel hardware. Features an aggressive range of foot peg positions, bringing your feet up to 45mm to 57.5mm higher up and 12.5mm to 25mm further back compared to stock, for a more supersport-like riding position ideally suited for tackling the fast straights and steep lean angles encountered on the track. The higher positions are ideal if you are also using our Katana Handle Bars (part# S-KATHB). Choice of Black or Gold anodized finish.
We also make a similar Rear Sets model that provides a lower range of peg positions, part# S-S1000RS
Details:
The Foot Pegs are fixed (non-folding) and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. Pegs include End Caps made of high-density black Delrin.

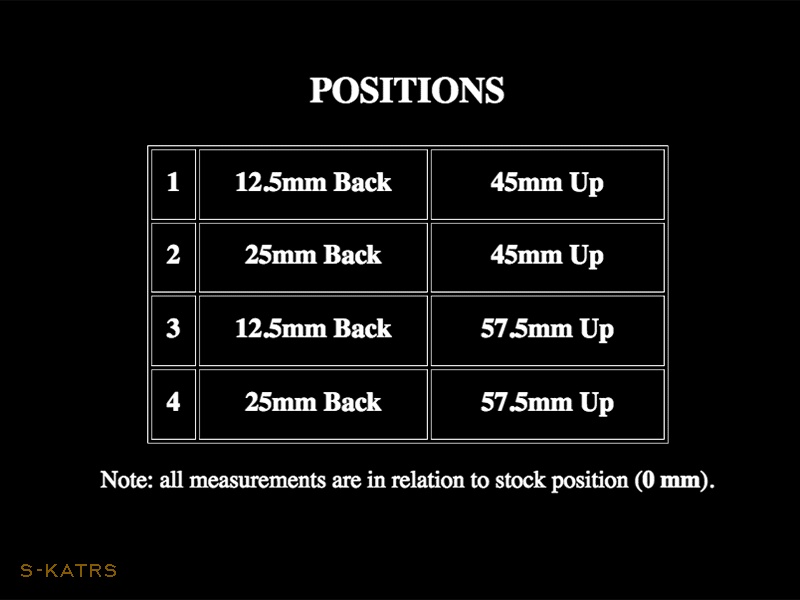

Adjustable design lets you select from 4 peg positions that bring your feet significantly higher up and further back compared to the stock foot rest position. See Position Chart above for the adjustment range.
The Pedal Tips (toe pegs) are made of tough, abrasion-resistant black DELRIN, and are also adjustable.
The shifter and brake pedals utilize miniature double stainless bearings for smooth, precise actuation with a solid feel, and pivot on a separate axis from the foot pegs for optimal leverage.
The Step Plates have a solid / single-piece design for maximum rigidity and durability.
Rear brake light compatible: includes hardware for attaching the OEM rear brake light pull switch. ABS-friendly design.
Includes an exhaust hanger bracket in Black-anodized finish. (Hanger can be removed if not needed)
The shift lever and linkage attach to the stock change arm*, providing a dedicated stock shift pattern. Compatible with both the original 2019-21 style change arm, and with the updated change arm with the integrated shift sensor found on the 2022+ model.
Rear Sets kit comes partly pre-assembled, and includes some basic instructions, but does not detail how to remove the stock set. (Consult a shop manual). We recommend installation be performed by a certified mechanic.
A small tube of threadlocker is included with the kit. (Factory pre-tightened parts have already had threadlocker applied during assembly.)
*NOTE: the above sample photo of the GOLD shifter side shows these Rear Sets installed together with SATO RACING Shift Arm for Suzuki part# S-CA2 on a 2020 Katana. This is an optional part available separately (for 2019-21 Katana) and is not included in this listing.
