Rear Sets - KTM 390 Duke 2017-23
SATO RACING Rear Sets for 2017-23 KTM 390 Duke* (part# KTM-D39017RS) feature a track-engineered and competition-ready design, with components precision CNC-machined out of light-weight, high strength billet aluminum, with stainless steel hardware. Modular design lets you select from 8 unique foot peg positions in a wide adjustment range, bringing your feet higher up compared to stock. Provide a stock shift pattern. Choice of all-Black anodized finish, or Gold finish over Black anodized Base Plates.
Details:
The Foot Pegs are fixed (non-folding) and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. Pegs include End Caps made of high-density black Delrin.

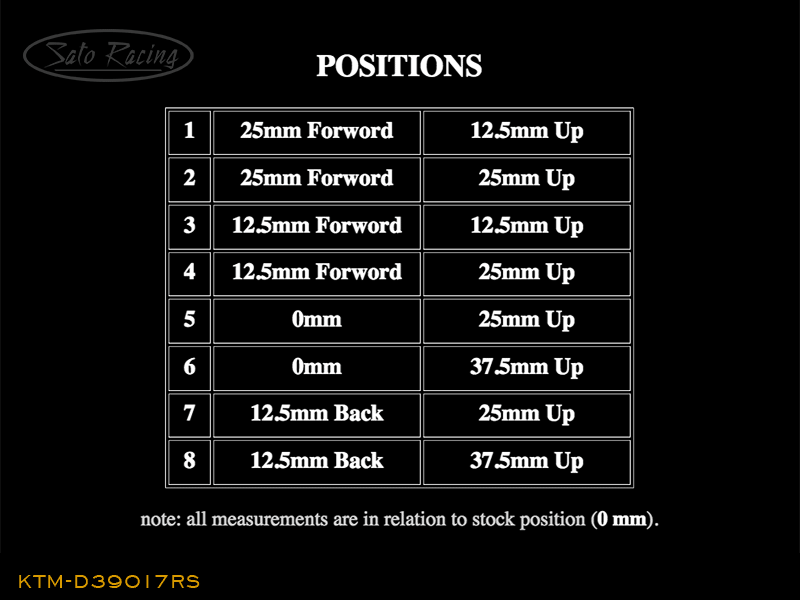

Adjustable design lets you select from 8 peg positions that bring your feet higher up compared to the stock foot peg position. See Position Chart above for the adjustment range.
The Pedal Tips (toe pegs) are made of tough, abrasion-resistant black DELRIN, and are also adjustable.
The shifter and brake pedals utilize miniature double stainless bearings for smooth, precise actuation with a solid feel, and pivot on a separate axis from the foot pegs for optimal leverage.
The Base Plates are made of high strength Black-anodized billet aluminum. They attach to the frame and swingarm pivot.
Includes an integrated bracket for attaching the OEM kickstand.
Compatible with the OEM rear brake light switch.
The shift rod attaches to the stock change arm and ball joint, providing a dedicated stock shift pattern. (Reverse / race shift pattern is not an option with this model).
Rear Sets kit comes partly pre-assembled, and includes some basic instructions, but does not detail how to remove the stock foot controls. (Consult a shop manual). NOTE: Specialized tools may be required to remove the stock components, so we recommend installation be performed by a certified mechanic.
A small tube of threadlocker is included with the kit. (Factory pre-tightened parts have already had threadlocker applied during assembly.
(Note: Although the Gold Rear Sets appear orangey in some of the ‘fit’ photos, above, these rear sets are gold, not orange.)
* Also fits the similar 2017-21 250 Duke (non-US model). This Rear Sets model will also technically fit the similar 2020-24 200 Duke, but some additional bolts / washers are required for the side stand. (Mention you have a 200 Duke when ordering, and we will include them).
