Handle Bar Ends - SHORT-style with Inner Weights for Ducati / aprilia / KTM / hollow bars

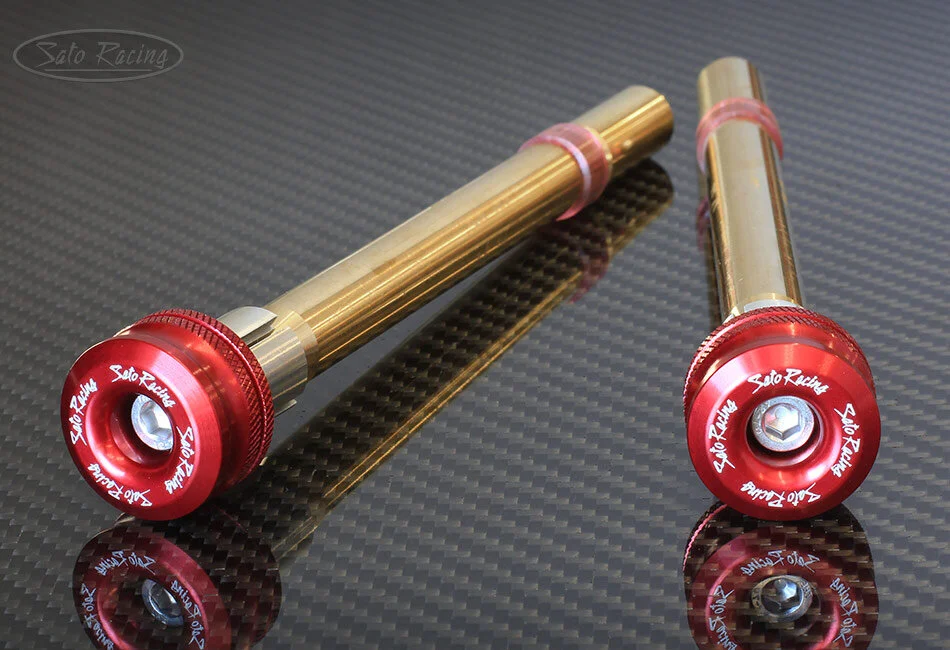

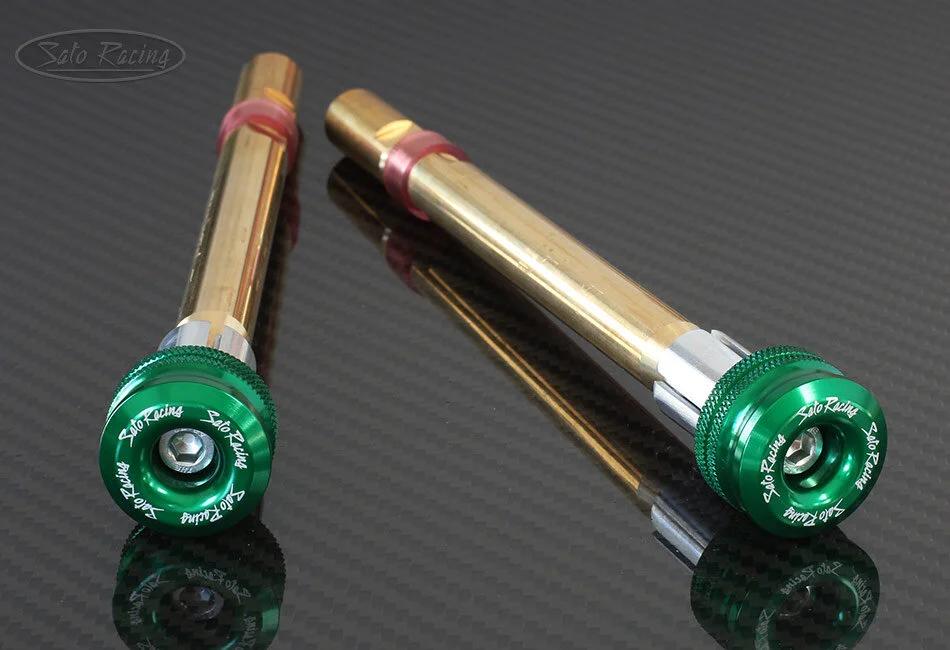

SATO RACING HANDLE BAR ENDS (Short-style) + Inner Weights for hollow bars (Ducati + various) (part# BE-2S) are 30mm diameter Short-style Handle Bar Ends CNC-machined out of lightweight, high strength billet aluminum in your choice of Black, Silver, Gold, Red, Green or Blue anodized finish, with a finely knurled grip pattern and white laser-etched 'Sato Racing' logo script around the outer edge. Features 2-piece layered aluminum stretch sleeve inserts that can be expanded to fit in bars with internal diameter of 18-19mm, or can fit in 14-16mm internal diameter if the outer stretch sleeve is removed. (Will not fit handle bars with 14mm or less internal diameter).
Attached to the Bar Ends are solid brass Inner Bar Weights that are 130mm long + a 30mm section that can be removed if necessary for clearance, for a total length of 160mm. The weights are approximately 7oz ea, and can be helpful for suppressing vibration in the handlebars. The weights are compatible with bars that have at least 140mm of hollow depth and over 14mm internal diameter. Bar Ends and weights are fastened together with stainless steel bolts. (Set of 2)
Compatible with the following models*:
DUCATI (Fits most models. Will not fit Multistrada 1100S)
KTM 125/200 Duke (-'14)/ 690/790 Duke/ 990/1290 SuperDuke** / RC8/R
APRILIA RSV4 '09- / Tuono V4 R '12-'16
EBR 1190RX
Husqvarna Vitpilen 701 ‘19-’20 / Vitpilen 401 / Svartpilen 401 ‘18-’19
Indian FTR 1200**
MV Agusta Brutale 1090/675/800 / F4**
Triumph Daytona 675R
Kawasaki Ninja H2 '15-
Suzuki SV650 ABS / GSX-S1000/Katana / Hayabusa -‘20
SATO RACING 'Race Concept' Clip-On Handle Bars
some aftermarket handle bars/ clip-ons (if I.D. is over 14mm and less than 19mm)
*NOTE: For stock bars, there may be internal bar inserts that need to be removed before our bar ends and weights can be installed.
** Some Indian FTR 1200, KTM 1290 and later MV Agusta models are not compatible with the Inner Weights due to having a slightly too narrow internal diameter, amd/or there are interference issues inside the bars, so please check your bars before ordering.
NOTE: the inner weights might not fit inside handle bars that have exactly 14mm internal diameter, since the weights are also exactly 14mm. additionally, the rubber insulators on the weights add another millimeter to the diameter. Removing the insulators should allow the weights to be used with bars closer to 14mm.
